N2.2分离器法兰 N3.0工作液接口 N4.0分离器排液口
N4.2冲洗、排液口 N4.3泄漏液排放口

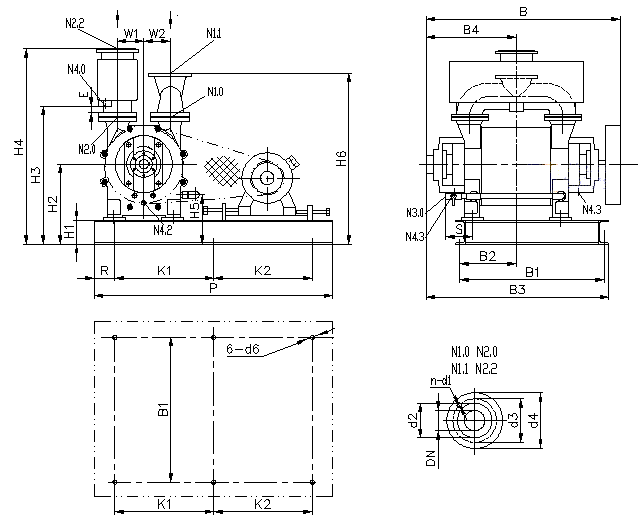

| 2BE1 202/203/252/253皮带传动安装尺寸 | |
| |
|
| N1.0进气端法兰 N1.1连通管法兰
N2.0排气端法兰 N2.2分离器法兰 N3.0工作液接口 N4.0分离器排液口 N4.2冲洗、排液口 N4.3泄漏液排放口 |
|
|
代号
|
B1
|
B2
|
B3
|
B4
|
B
|
d6
|
E
|
H2
|
H3
|
H4
|
H5
|
H6
|
K1
|
K2
|
P
|
|
|
2BE1 202
|
730
|
273
|
951
|
469
|
1030
|
27
|
37
|
470
|
784
|
1140
|
282
|
995
|
580
|
580
|
1400
|
|
|
2BE1 203
|
850
|
333
|
1071
|
529
|
1140
|
27
|
37
|
470
|
784
|
1140
|
282
|
995
|
580
|
580
|
1400
|
|
|
2BE1 252
|
950
|
345
|
1230
|
595
|
1280
|
27
|
42
|
580
|
979
|
1425
|
328
|
1210
|
800
|
800
|
1900
|
|
|
2BE1 253
|
1100
|
420
|
1380
|
670
|
1430
|
27
|
42
|
580
|
979
|
1425
|
328
|
1210
|
800
|
800
|
1900
|
|
|
代号
|
R
|
S
|
W1
|
W2
|
N3.0
|
N4.0
|
N4.2
|
N4.3
|
|
|
||||||
|
2BE1 202
|
120
|
180
|
155
|
155
|
G1"
|
G3"
|
G3/4"
|
G3/4"
|
|
|
||||||
|
2BE1 203
|
120
|
180
|
155
|
155
|
G1"
|
G3"
|
G3/4"
|
G3/4"
|
|
|
||||||
|
2BE1 252
|
150
|
200
|
215
|
215
|
G11/4"
|
G3"
|
G1"
|
G3/4"
|
|
|
||||||
|
2BE1 253
|
150
|
200
|
215
|
215
|
G11/4"
|
G3"
|
G1"
|
G3/4"
|
|
|
||||||
|
代号
|
DN
|
d1
|
d2
|
d3
|
d4
|
n
|
代号
|
DN
|
d1
|
d2
|
d3
|
d4
|
n
|
|||
|
2BE1 202
|
N1.0
N2.0 |
100
|
18
|
158
|
180
|
220
|
8
|
2BE1 252
|
N1.0
N2.0 |
125
|
18
|
188
|
210
|
250
|
8
|
|
|
N1.1
N2.2 |
125
|
18
|
188
|
210
|
250
|
8
|
N1.1
N2.2 |
150
|
22
|
212
|
240
|
285
|
8
|
|||
|
2BE1 203
|
N1.0
N2.0 |
100
|
18
|
158
|
180
|
220
|
8
|
2BE1 253
|
N1.0
N2.0 |
125
|
18
|
188
|
210
|
250
|
8
|
|
|
N1.1
N2.2 |
125
|
18
|
188
|
210
|
250
|
8
|
N1.1
N2.2 |
150
|
22
|
212
|
240
|
285
|
8
|
|||
